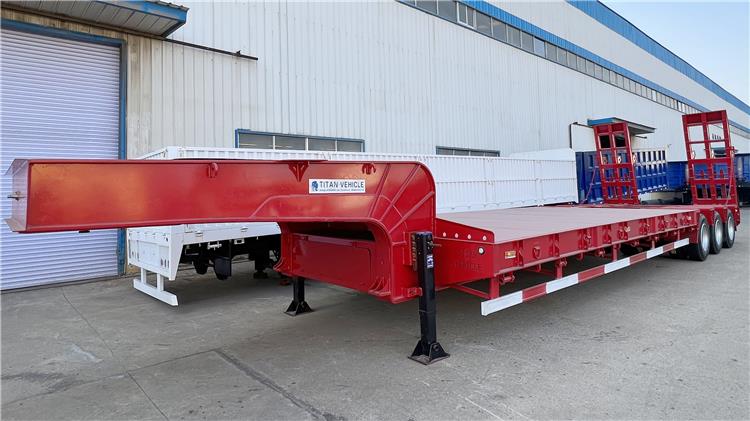

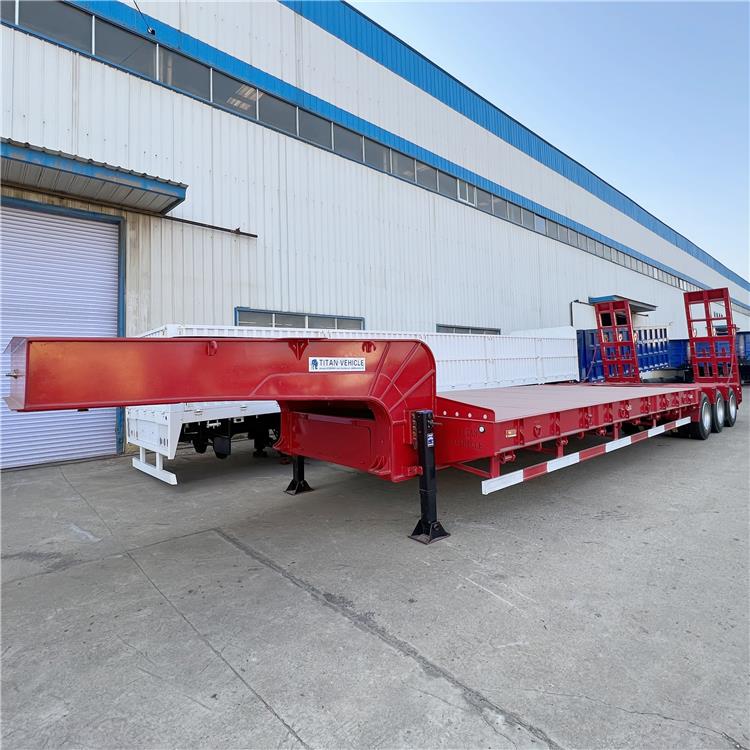

The lowbed semi trailer for sale platform,the lowbed semi trailer for sale thickness is 5 mm. Lowbed semi trailer for sale adopts 3 lines 6 axles on the trailer, which can carry 120-150 tons.

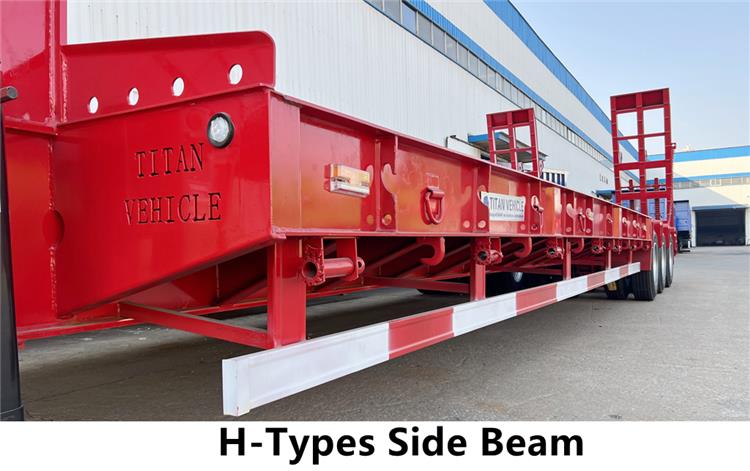

H-type side beam,the height is 300 mm and width is 140 m.This side beam will never deform even carry heavy machines.
3 Line 6 Axle 120 Ton Lowbed Semi Trailer in Costa Rica San Jose
3 Line 6 Axle 120 Ton Lowbed Semi Trailer in Costa Rica San Jose
3 Line 6 Axle 120 Ton Lowbed Semi Trailer in Costa Rica San Jose
3 Line 6 Axle 120 Ton Lowbed Semi Trailer in Costa Rica San Jose
3 Line 6 Axle 120 Ton Lowbed Semi Trailer in Costa Rica San Jose
3 Line 6 Axle 120 Ton Lowbed Semi Trailer in Costa Rica San Jose

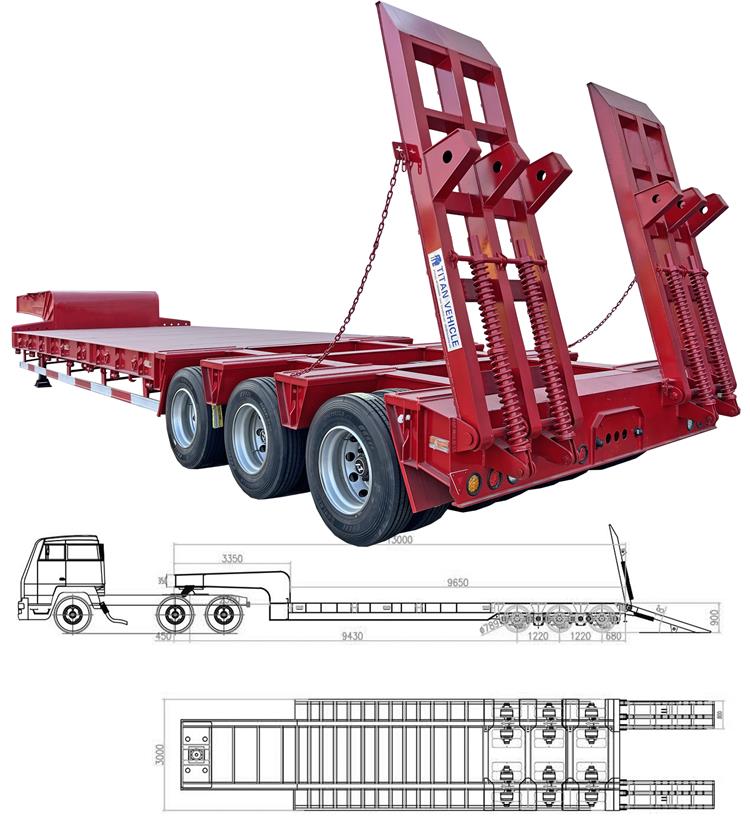

Dimension: 14500*3000*1250 mm
Loading capacity: 120 ton
Axle: 3 lines,6 axles,

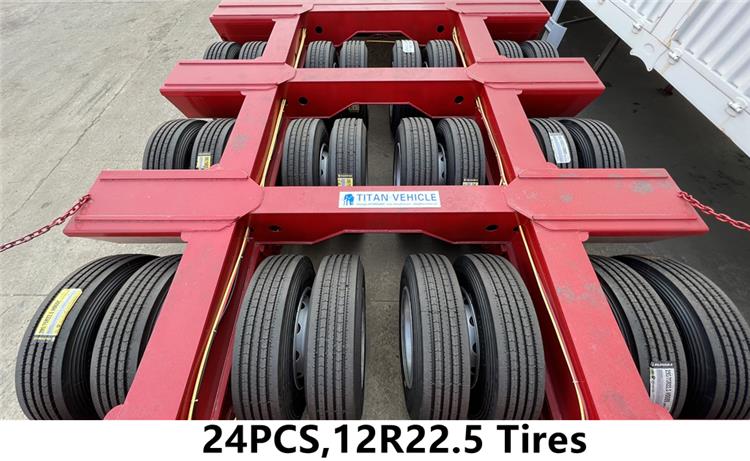

Tire: 12.00R22.5, 24 units
Main beam: middle plate:550 mm high,14+14mm thick;upper plate:20 mm thick,250 mm wide;bottom plate:20 mm thick,250 thick
Side beam: 300 mm height, 140 mm width, H-type
Inclined support:H-type
Bottom plate: 5 mm thick checkered plate
Suspension: Heavy-duty mechanical suspension10 mm thick suspension with 70 mm center balance pin
Landing gear: JOST A400

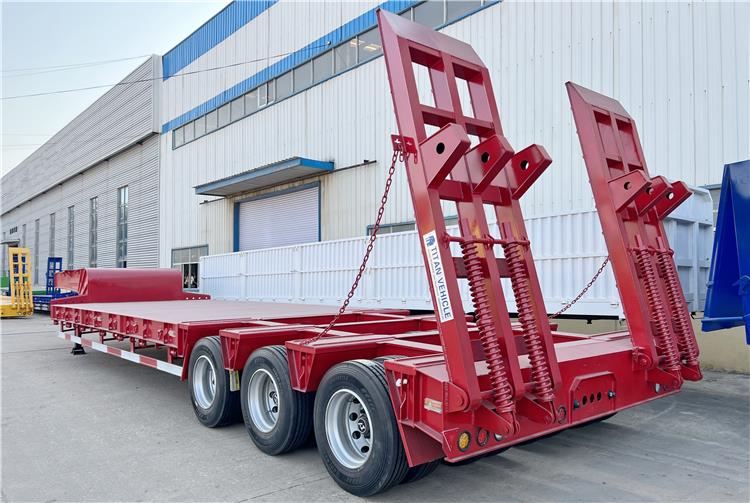

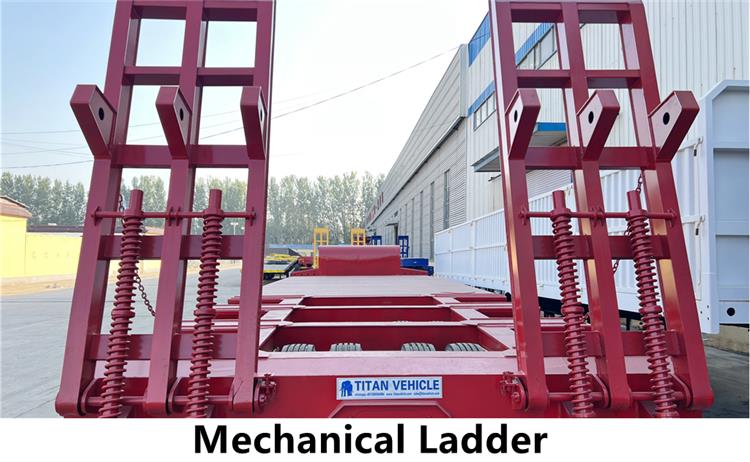

Ladder: mechanical ladder
