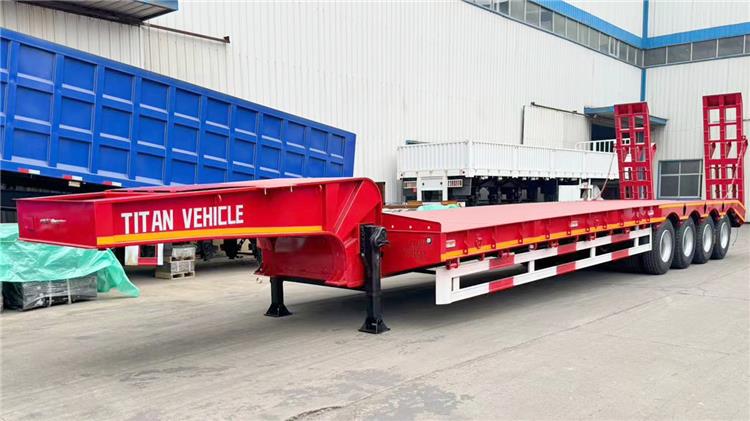

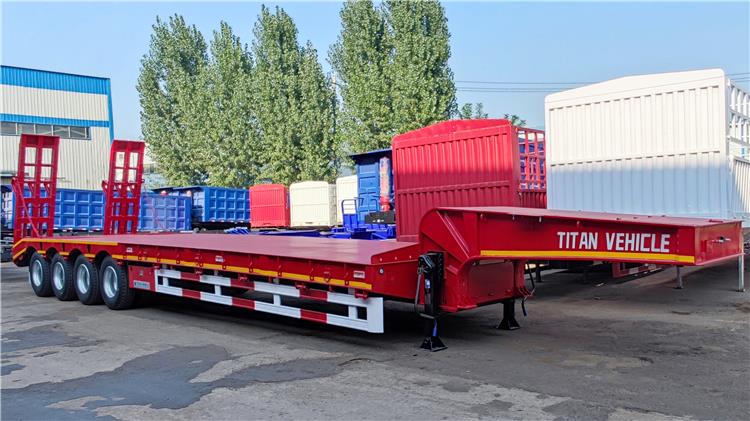

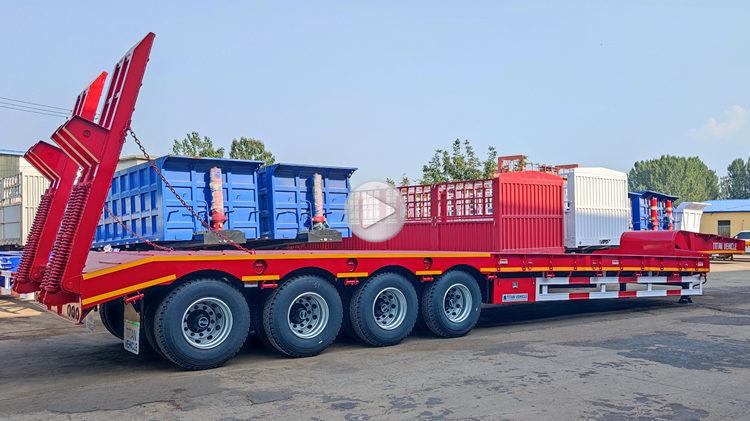

The main feature of a drop deck trailer is that it has a lower cargo platform. The position of its cargo platform is even lower than the height of the tires. The structure of the cargo loading platform is called a concave beam or through-beam structure.
The main advantage of an excavator trailer is its high stability. The concave beam structure reduces the height of the cargo's center of gravity, thereby improving transportation stability.
4 Axle Drop Deck Excavator Trailer Price in Costa Rica
4 Axle Drop Deck Excavator Trailer Price in Costa Rica
4 Axle Drop Deck Excavator Trailer Price in Costa Rica
4 Axle Drop Deck Excavator Trailer Price in Costa Rica
4 Axle Drop Deck Excavator Trailer Price in Costa Rica
4 Axle Drop Deck Excavator Trailer Price in Costa Rica

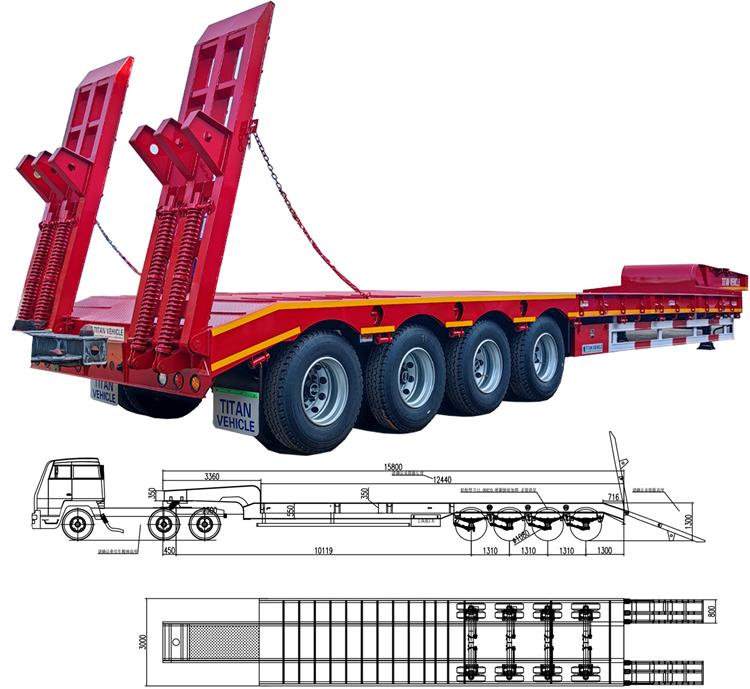

Overall dimension: 15800*3000*1250 mm
Loading capacity(T): 100 Tons
Work platform Length: 12000 mm
Material: Q460C high-strength steel
Main beam:middle: 550*16 mm;bottom:20*230 mm;upper:20*230 mm
Side beam: 300mm*140mm H-type (10/8/10mm)

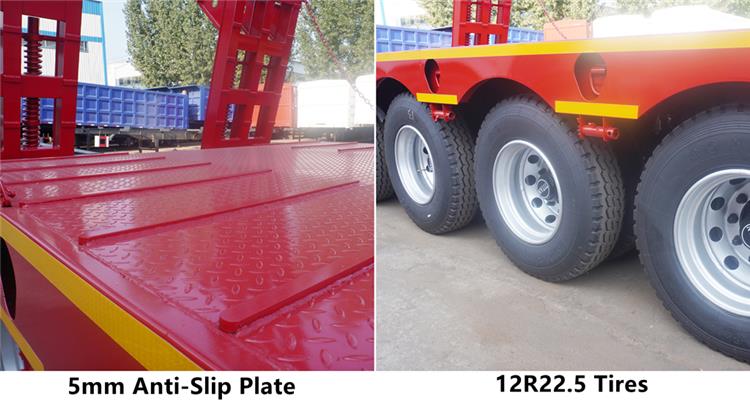

Bottom platform: 5mm, checkered plate

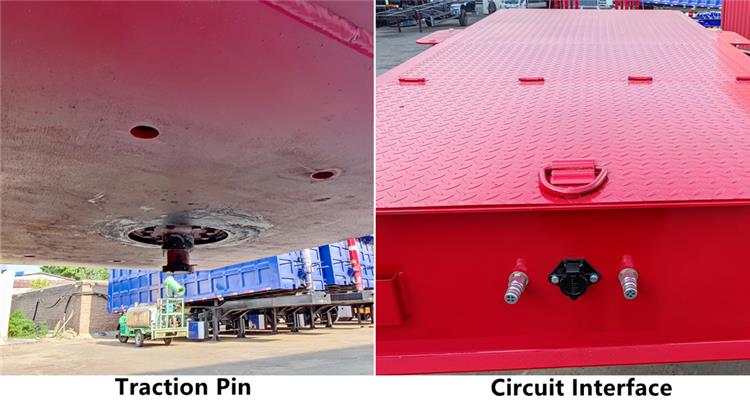

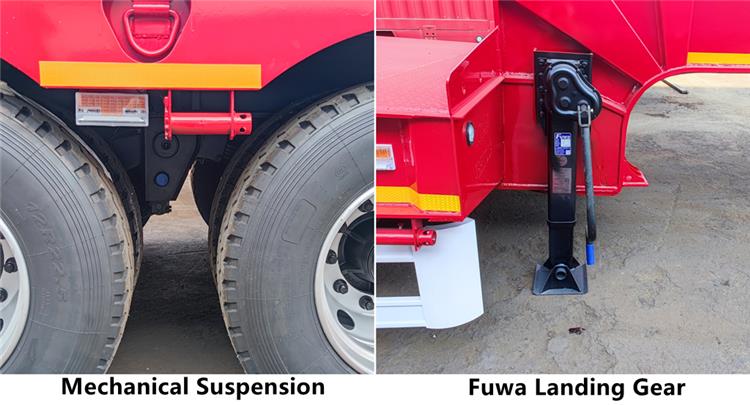

Suspension: 10mm thickness,70 mm diameter kin pin
Landing gear: 28 tons

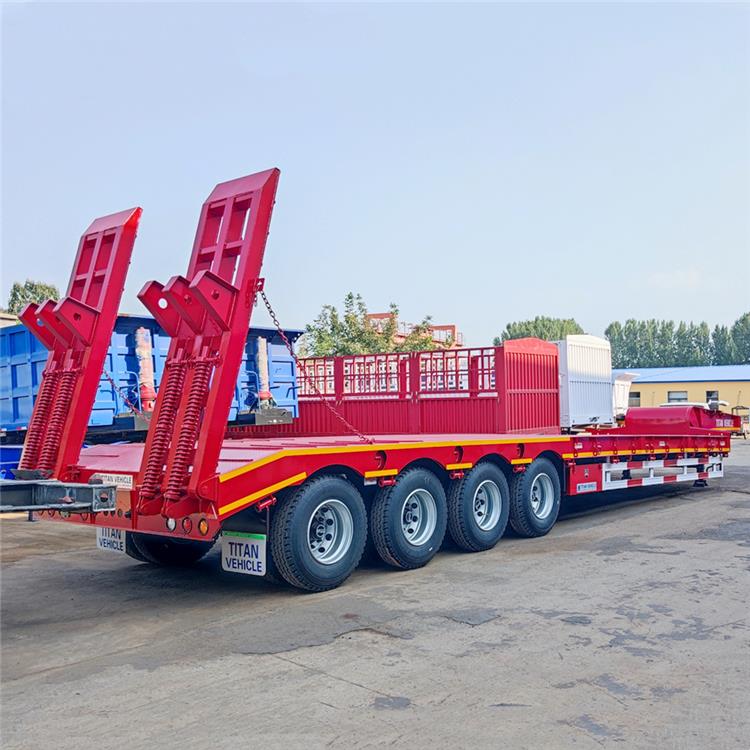

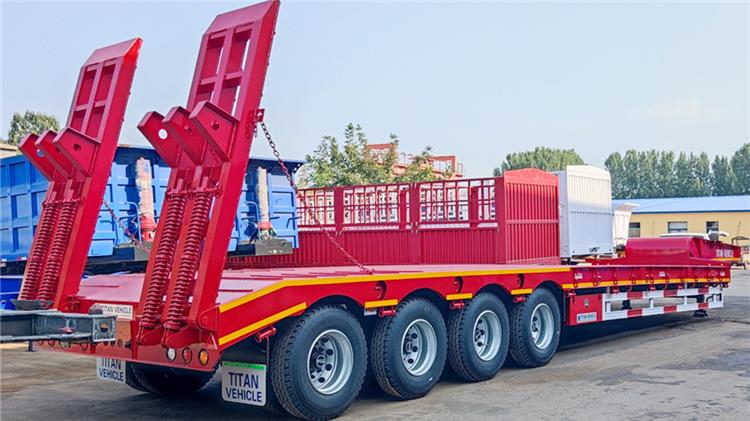

Ramp: Double spring ramp
